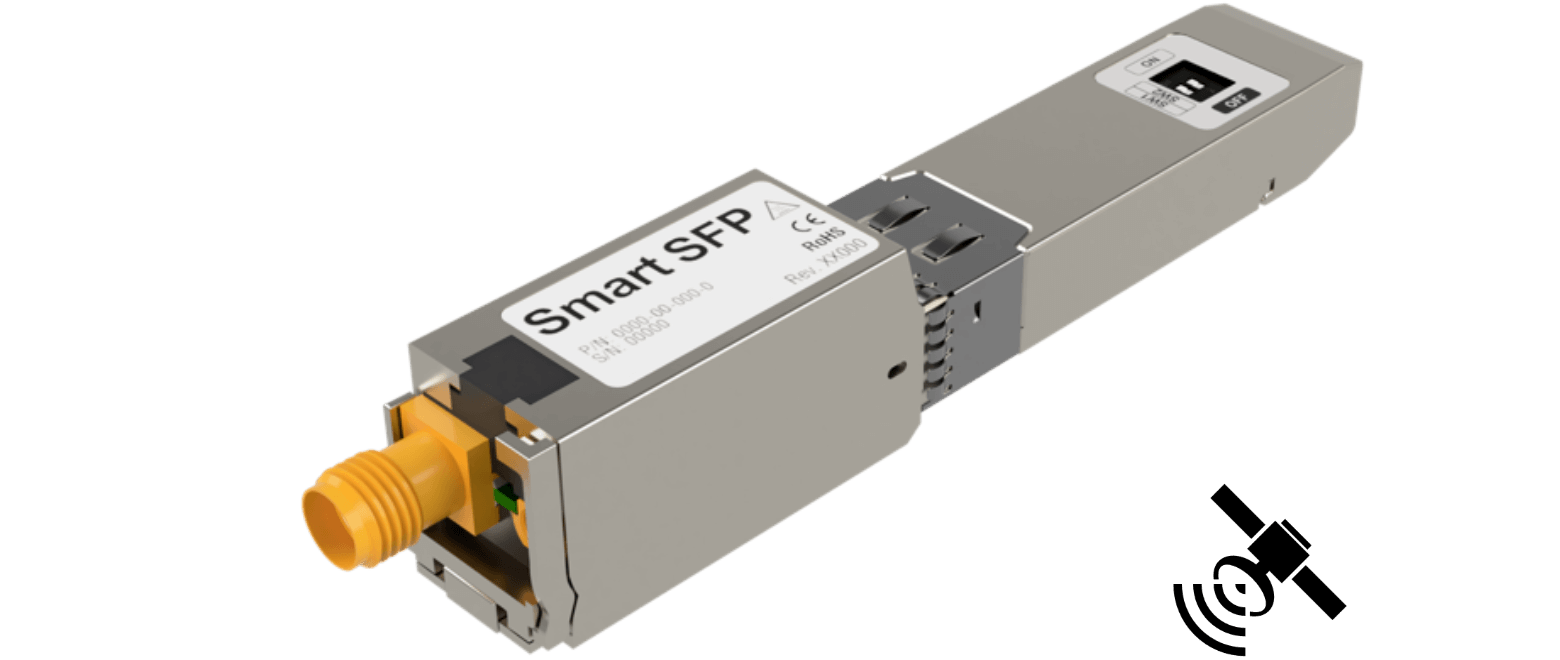

Smart SFP Time Server provides accurate phase and frequency synchronization using PTP and NTP at the network edge and aggregation sites. SFP form factor and rich feature set enable a wide range of deployment options for network synchronization.
From mobile networks and power utilities to time-critical applications, Smart SFP Time server enables precise synchronization in the most space-restrictive environments and provide a simple way to upgrade legacy systems with Precision Time Protocol.
Smart SFP Time Server compatible with network equipment of any vendor.
Time synchronization
- PTP IEEE 1588v2 (2008)
- PTP Ordinary (Grandmaster), Boundary, Slave
- UDP/IPv4 and raw Ethernet (L2)
- Profiles: Default 1588
- Profiles: Telecom (G.8265.1, G.8275.1, G.8275.2)
- Profiles: Automotive
- Profiles: Enterprise
- Simultaneous multiple PTP and NTP instances
- PTP to NTP gateway
- NTP server, client
- Common or separate PTP and management IP addresses
- VLAN (IEEE 802.1Q) or untagged
- Flexible configuration using Linux utils
Model with built-in receiver
- GNSS receiver built-in to module
- GPS, GALILEO, GLONASS, Beidou
- Support any RF antenna, SMA connector
- 1 PPS input or output, MMCX connector
- Power 3.3 V from module to antenna
Management
- CLI over SSH, SNMP, REST API
- Static IP, DHCP
- IPv4, IPv6, VRF
- VLAN
- ACL, VPN
- LED status indicator
- Remote software upgrade
General
- SFP MSA compliant
- Multi-vendor compatibility
- Industrial temperature
Model with external receiver
- Antenna with built-in GNSS receiver is required
- GPS, GALILEO, GLONASS, Beidou
- RS-232 (NMEA and antenna control)
- 1 PPS input
- Power 5 V from module to antenna
- Cable length up to 10 m
- RJ-45 connector
