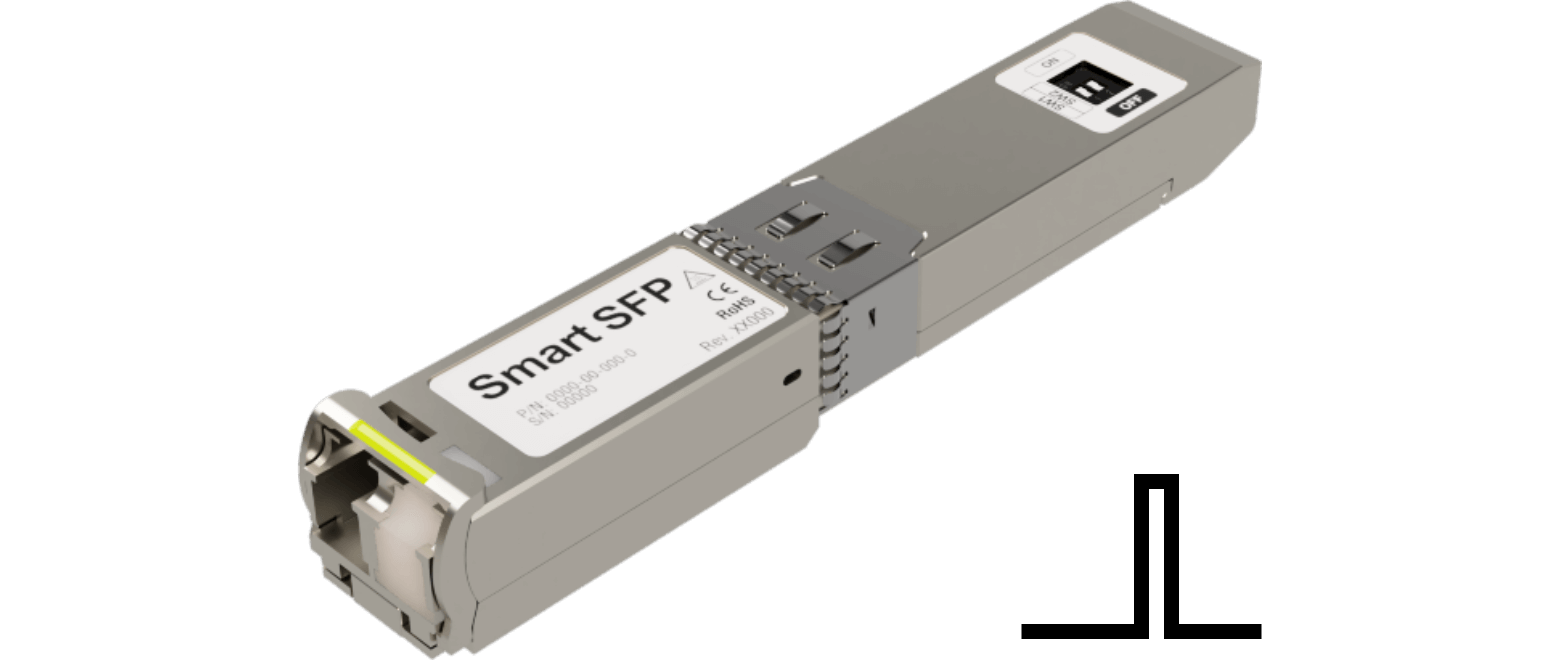

Smart SFP OTDR is a Gigabit Ethernet and STM-1/4 transceiver with built-in OTDR function.
Acting like a conventional SFP transceiver, once optical signal loss detected Smart SFP OTDR automatically measures the distance to the fiber break point and reports it.
It is installed in network equipment of any vendor for fast break point identification of the optical fiber and for real time optical links monitoring.

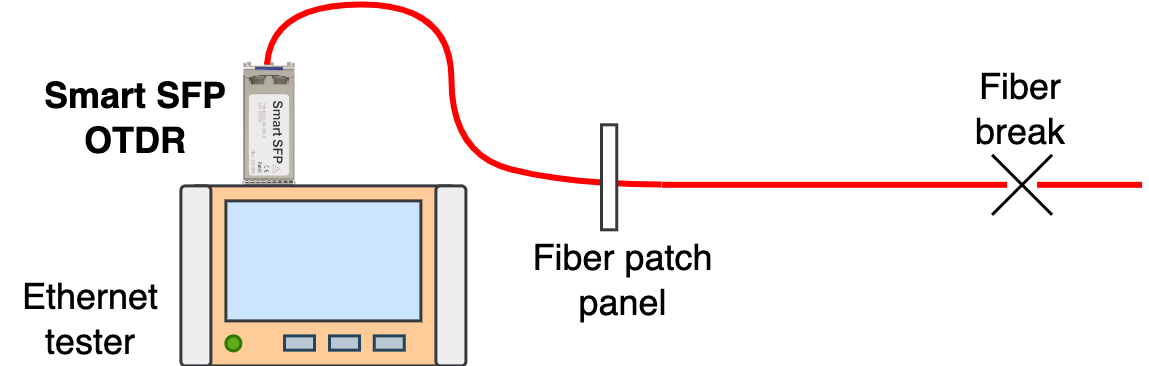

Smart SFP OTDR can be used to upgrade handheld Ethernet testers with an SFP slot.
Features
- Gigabit Ethernet, 1.25 Gbps
- STM-1/4, 155/622 Mbps

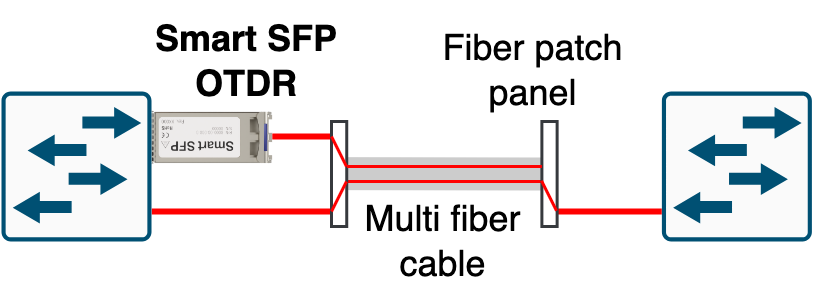

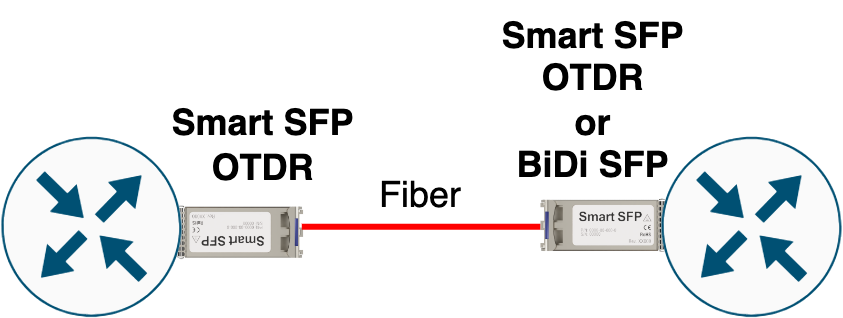

- Operating modes: Data + OTDR, OTDR only

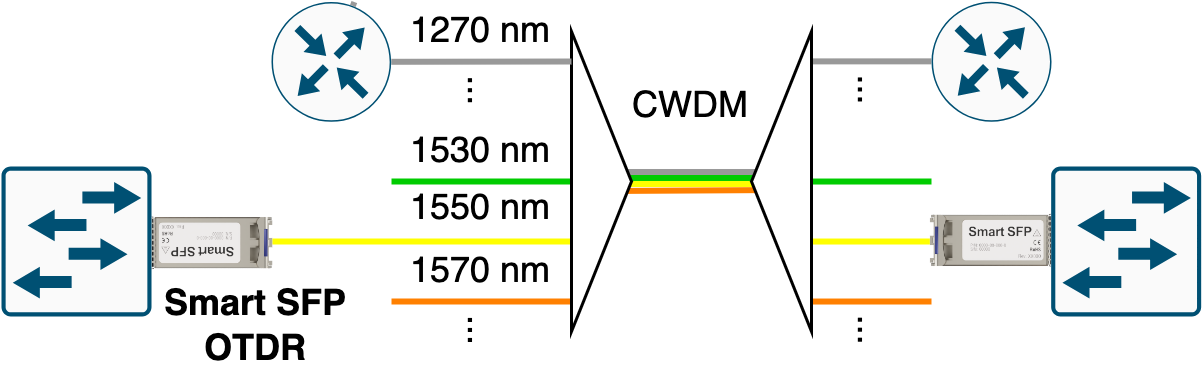

- Wavelengths: any CWDM, 1625, 1650 nm
- Single wavelength single fiber operation (SWSF)
- Operating distance: up to 50 km
- Measuring distance accuracy: 5 to 50 m
- OTDR Tx pulse power: > 10 dBm
- OTDR Rx sensitivity: < -46 dBm
- Result output in meters or miles
Management
- CLI, SNMP, Web (depends on host capabilities)

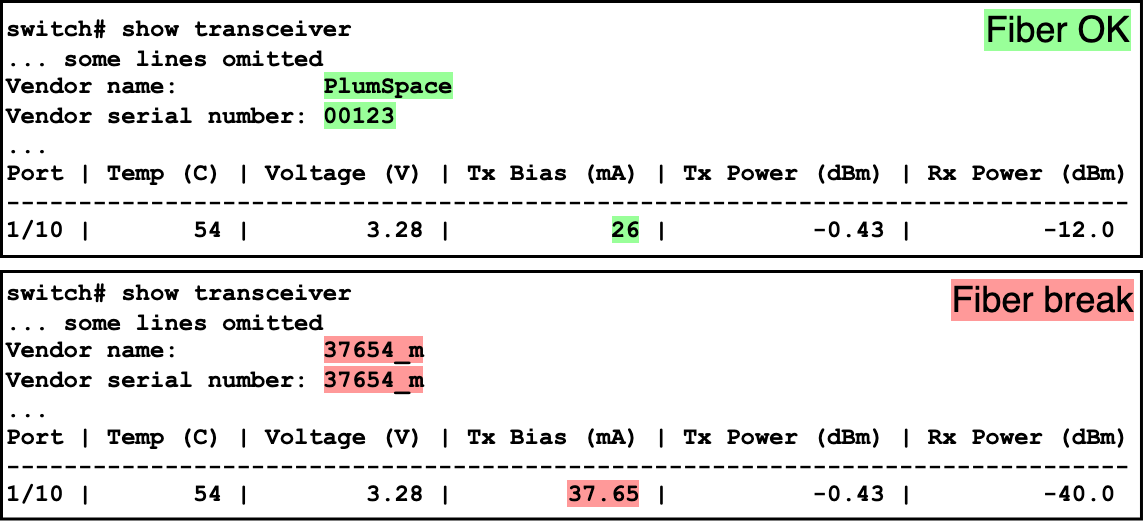

- Report measurement result over: - module IDs – Vendor name, Serial number
- DDM – Bias current, Temperature
General
- Digital Diagnostics Monitoring (DDM)
- SFP MSA compliant
- Multi-vendor compatibility
- Industrial temperature
