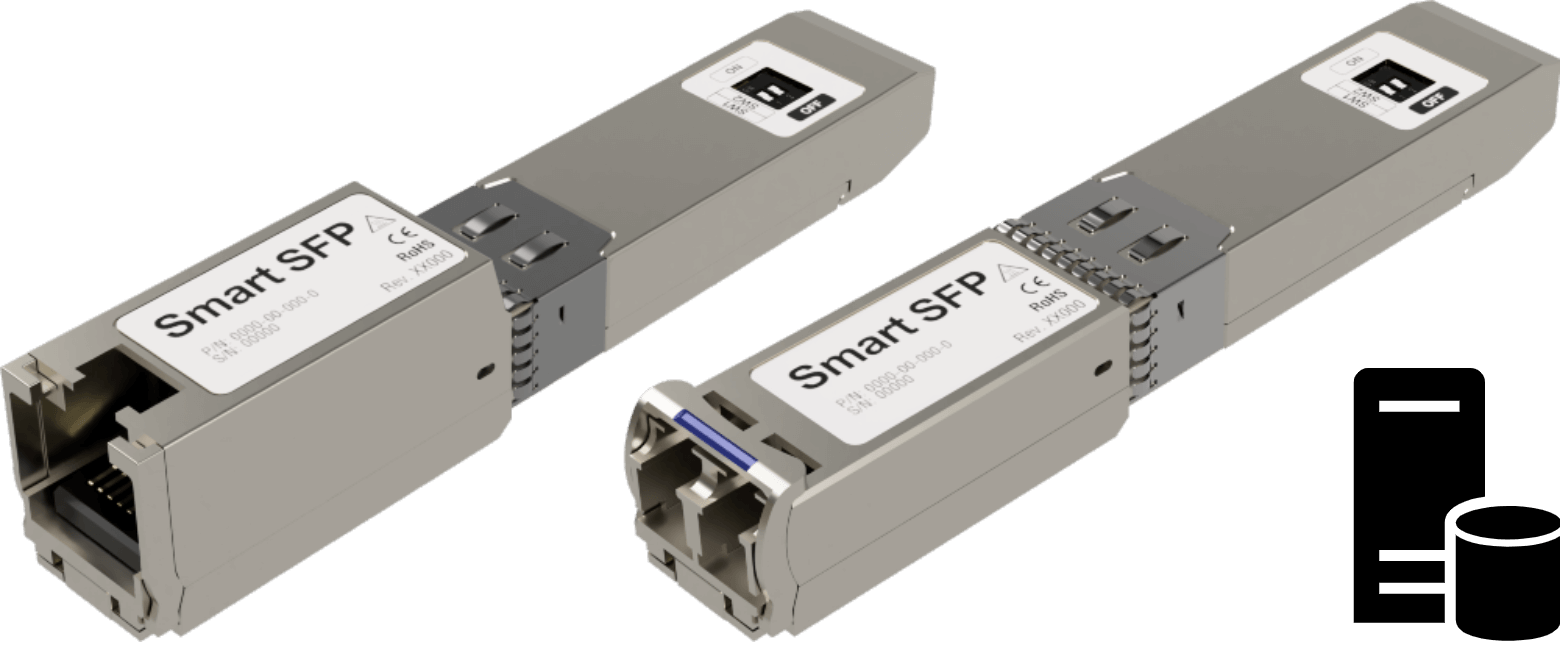

Smart SFP Mini Server is designed for a wide range of applications where network interfaces are required and rack space is limited.
Module is installed in an SFP slot and compatible with network equipment from any vendor.
| Parameters | Model 1 | Model 2 | Model 3 |
|---|---|---|---|
| CPU | ARMv7, 1 core, 528 MHz | ARMv8, 2 cores, 1200 MHz | MIPS, 2 cores, 800 MHz |
| RAM | 512 MB DDR3 | 1 GB DDR4 | 1 GB LPDDR3 |
| Flash | 4 GB, eMMC | 4 GB, eMMC | 512 MB, SPI |
| Operating System | Debian | Debian | OpenWRT |
| Host interface | 1G | 1G | 1G/10G |
| Line interface: | |||
| Fiber Ethernet | + | + | + |
| Copper Ethernet | + | − | − |
| RS-232 | + | − | − |
| USB | + | − | − |
| Without | − | − | + |
Line interfaces
- Gigabit Ethernet, 1000BASE-LX, dual fiber
- Gigabit Ethernet, 10/100/1000BASE-T, RJ-45
- 1/10 Gigabit Ethernet, 1000BASE-LX/10GBASE-LR, dual fiber
- RS-232: 1 (full) or 3 (Tx/Rx) ports, up to 115200 bps
- USB 2.0, type A
- Without (Out-of-line)
General
- 1/10 Gigabit Ethernet
- Inline or out-of-line installation
- Digital Diagnostics Monitoring (DDM)
- SFP/SFP+ MSA compliant
- Multi-vendor compatibility
- LED status indicator
