Smart SFP IP SLA Probe is a network performance monitoring and diagnostic device in the SFP form factor. Smart SFP is installed in any network device with an SFP slot and simultaneously acts as both a standard SFP module and an IP SLA Probe.
Accurate and precise SLA performance is critical for any network infrastructure. Smart SFP IP SLA Probe is the unique high-performance, scalable and compact hardware device that combines service assurance with granular monitoring and performance testing. Mobile operators, service providers and enterprises can use it for performance monitoring or by for service assurance.
Smart SFP IP SLA Probe provides the ability to perform Y.1564, TWAMP testing, enable Smart Loopback on L2-L4 and analyze traffic statistics. Smart SFP IP SLA Probe seamlessly integrates with any active network monitoring platform. The central platform provides an integrated dashboard to monitor your network and services at scale.
Y.1564
- Y.1564, 4 streams, 1-way, 2-way
- Line rate packet generator and analyzer
- Measurements with microsecond accuracy
Smart Loopback
- MACs, IPs and TCP/UDP ports swap
- Persistent, on-demand
- Condition: own MAC dst or by filter
- Filter by fields: VLAN ID, IP src/dst, TCP/UDP src/dst ports
- 12 filters on each port
- Redirect packets to another MAC/IP (headers rewrite)
- TWAMP Light at line rate (HW offload)
- Smart Loopback and TWAMP Light on behalf of another device (another MAC dst)
- Up to 3 VLAN tags and MPLS labels
- Statistics
- Compatible with testers of any vendor
Flow manager
- Actions by filters
- Actions: stat, drop, pass
- Filter with mask by fields: VLAN ID, Protocol,
- IP src/dst, TCP/UDP src/dst ports
- 32 filters
- Statistics
Performance monitoring
- TWAMP sender and responder
- iPerf
Timestamp insertion
- Timestamp insertion in transit packets
- 8 bytes pattern lookup and replace
- Any point in a frame/packet
- NTP Timestamp format
Management
- CLI over SSH, SNMP, REST API
- Static IP, DHCP
- IPv4, IPv6, VRF
- VLAN
- Loaned IP
- ACL, VPN
- PTP slave, NTP client
- LED status indicator
- Remote software upgrade
General
- 1/10 Gigabit Ethernet
- Max frame size 9600 bytes
- Up to 3 VLAN tags and MPLS labels

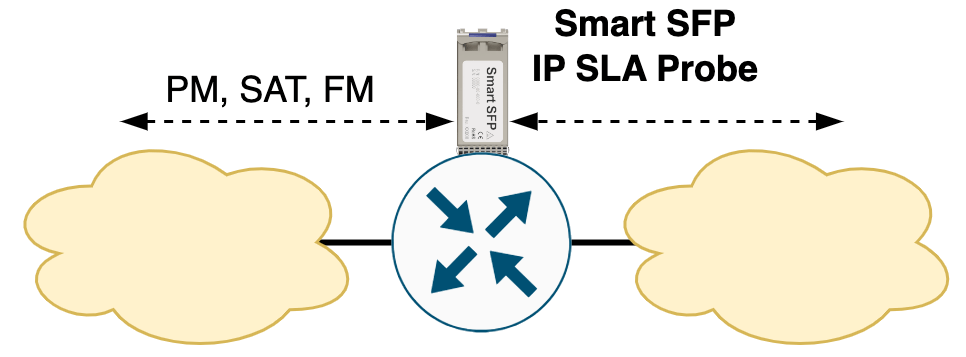

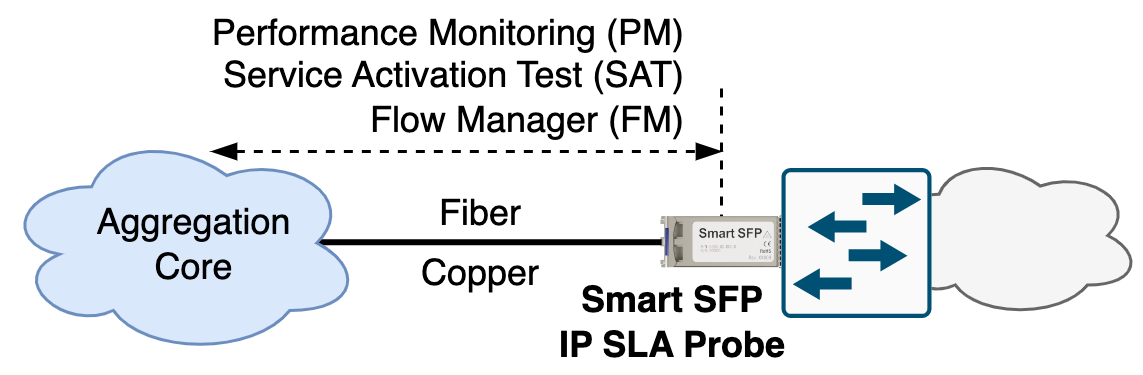

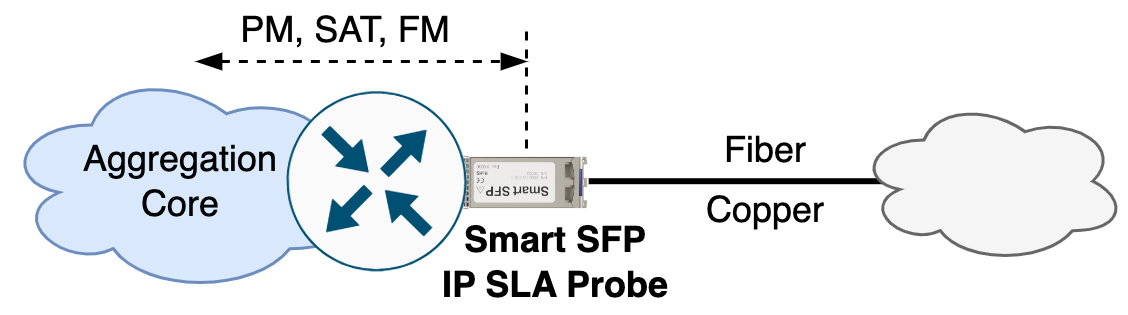

- Inline and out-of-line installation
- Digital Diagnostics Monitoring (DDM)
- SFP/SFP+ MSA compliant
- Multi-vendor compatibility
- Industrial temperature
